Model

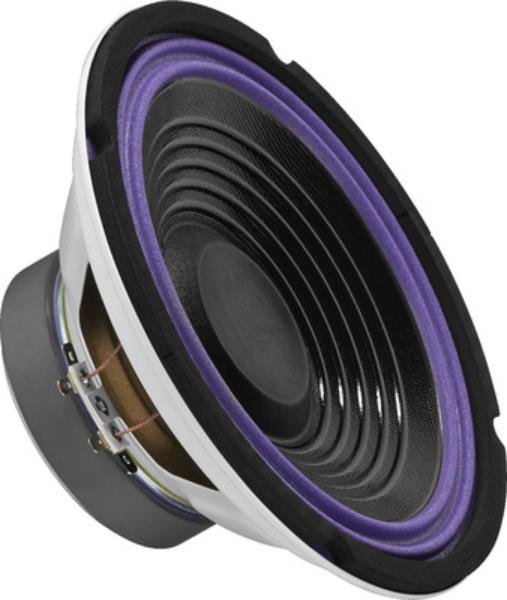

Monacor SP-202C MK2
Rating
DIAM
8"
FS(Hz)
37
VAS(l)
61
QTS
0.5
PWR(W)
150
SPL(dB)
89.1
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
37
Vas(l)
61
Qts
0.5
Qms
3.64
Qes
0.58
Bl(Tm)
5.5
Mms(gr)
19
Cms(mm/N)
0.95
Rms(kg/s)
1.21
Le(mH)
0.3
Re(Ohm)
3.8
Sd(sq.mm)
21400
Vd(l)
0.086
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
150
RMS Power(W.)
75
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.51
Sensitivity(dB) 1-W
89.1
Sensitivity(dB) 2.8-V
92.3
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
202
Cutout Diameter (mm)
182
Mounting Depth (mm)
80
Magnet Diameter (mm)
100
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
