Model

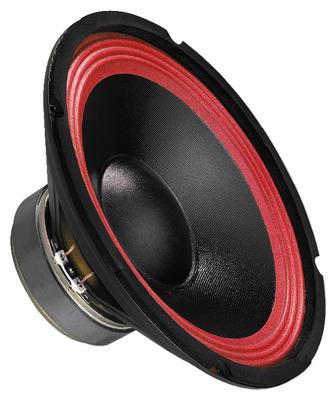

Monacor SP-250PA
Rating
DIAM
10"
FS(Hz)
48
VAS(l)
72
QTS
0.78
PWR(W)
250
SPL(dB)
90.9
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
48
Vas(l)
72
Qts
0.78
Qms
3.8
Qes
0.98
Bl(Tm)
7.6
Mms(gr)
27
Cms(mm/N)
0.41
Rms(kg/s)
2.14
Le(mH)
0.9
Re(Ohm)
6.9
Sd(sq.mm)
35600
Vd(l)
0.151
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
250
RMS Power(W.)
125
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.78
Sensitivity(dB) 1-W
90.9
Sensitivity(dB) 2.8-V
91.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
255
Cutout Diameter (mm)
232
Mounting Depth (mm)
110
Magnet Diameter (mm)
110
Optimum Enclosures
Enclosures
Closed, BP4
