Model

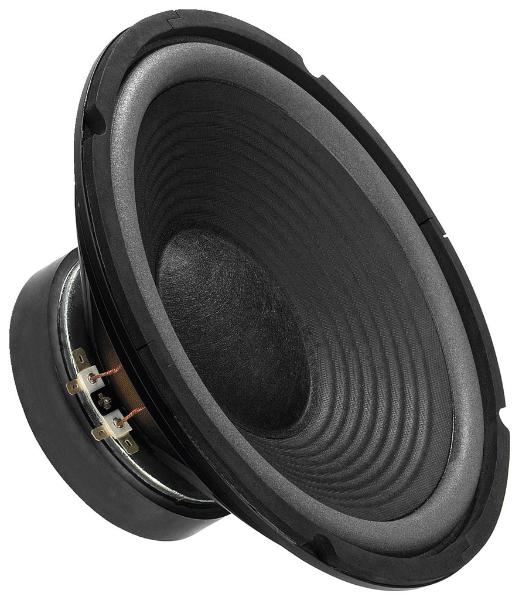

Monacor SP-252E
Rating
DIAM
10"
FS(Hz)
42
VAS(l)
57
QTS
0.5
PWR(W)
150
SPL(dB)
90.4
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
42
Vas(l)
57
Qts
0.5
Qms
3.13
Qes
0.595
Bl(Tm)
8.5
Mms(gr)
43
Cms(mm/N)
0.334
Rms(kg/s)
3.63
Le(mH)
1.1
Re(Ohm)
3.8
Sd(sq.mm)
35300
Vd(l)
0.141
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
150
RMS Power(W.)
75
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.68
Sensitivity(dB) 1-W
90.4
Sensitivity(dB) 2.8-V
93.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
255
Cutout Diameter (mm)
232
Mounting Depth (mm)
105
Magnet Diameter (mm)
125
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
