Model

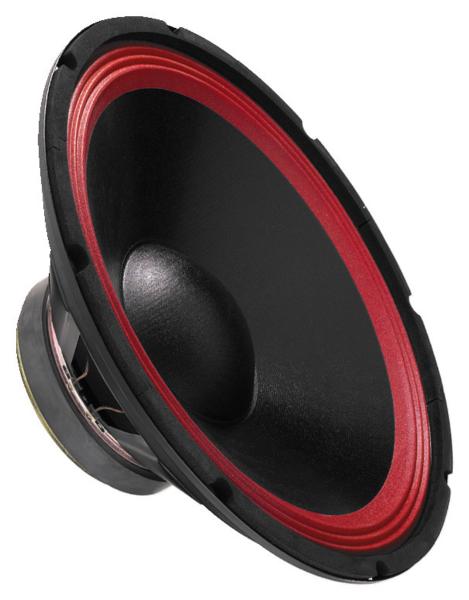

Monacor SP-380PA
Rating
DIAM
15"
FS(Hz)
38
VAS(l)
185
QTS
0.54
PWR(W)
500
SPL(dB)
96
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
38
Vas(l)
185
Qts
0.54
Qms
3.68
Qes
0.64
Bl(Tm)
14.5
Mms(gr)
95
Cms(mm/N)
0.19
Rms(kg/s)
6.164
Le(mH)
0
Re(Ohm)
5.9
Sd(sq.mm)
82857
Vd(l)
0.269
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
96
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
353
Mounting Depth (mm)
145
Magnet Diameter (mm)
156
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
