Model

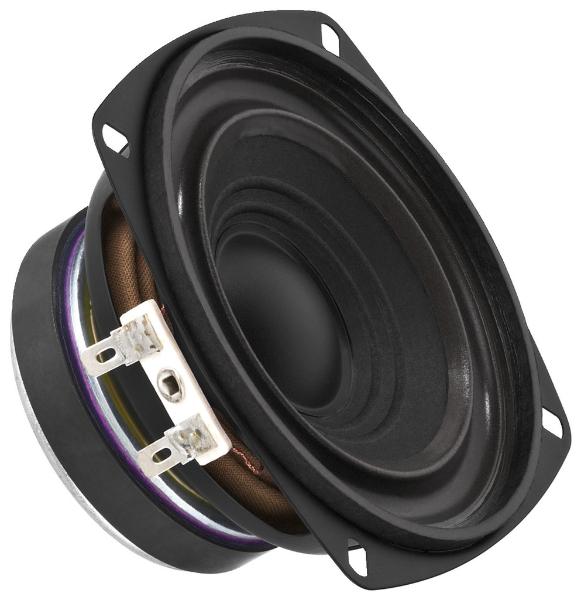

Monacor SP-40
Rating
DIAM
4"
FS(Hz)
80
VAS(l)
2.6
QTS
0.7
PWR(W)
16
SPL(dB)
83.2
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
80
Vas(l)
2.6
Qts
0.7
Qms
2.5
Qes
0.97
Bl(Tm)
4.3
Mms(gr)
6
Cms(mm/N)
0.62
Rms(kg/s)
1.15
Le(mH)
0.2
Re(Ohm)
6.5
Sd(sq.mm)
5500
Vd(l)
0.011
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
4
Max Power(W.)
16
RMS Power(W.)
8
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.13
Sensitivity(dB) 1-W
83.2
Sensitivity(dB) 2.8-V
84.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
