Model

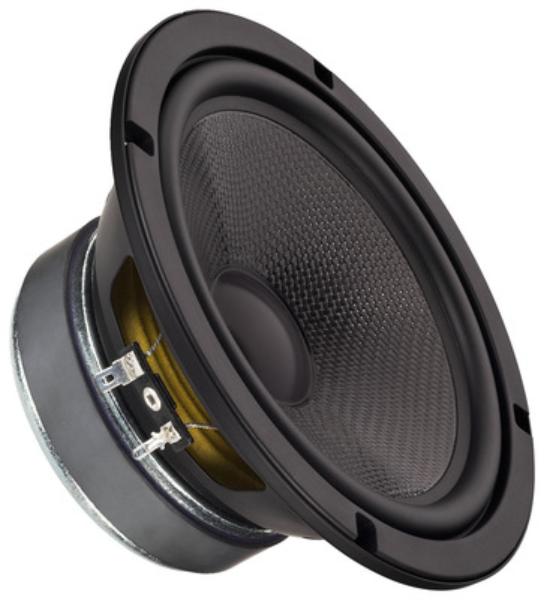

Monacor SP-6/108PRO
Rating
DIAM
6"
FS(Hz)
44
VAS(l)
25.5
QTS
0.32
PWR(W)
150
SPL(dB)
89.8
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
44
Vas(l)
25.5
Qts
0.32
Qms
4.28
Qes
0.35
Bl(Tm)
7.5
Mms(gr)
13
Cms(mm/N)
0.996
Rms(kg/s)
0.849
Le(mH)
0.43
Re(Ohm)
5.7
Sd(sq.mm)
13700
Vd(l)
0.082
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
150
RMS Power(W.)
100
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.6
Sensitivity(dB) 1-W
89.8
Sensitivity(dB) 2.8-V
91.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
168
Cutout Diameter (mm)
142
Mounting Depth (mm)
72
Magnet Diameter (mm)
100
Optimum Enclosures
Enclosures
Vented, BP6
