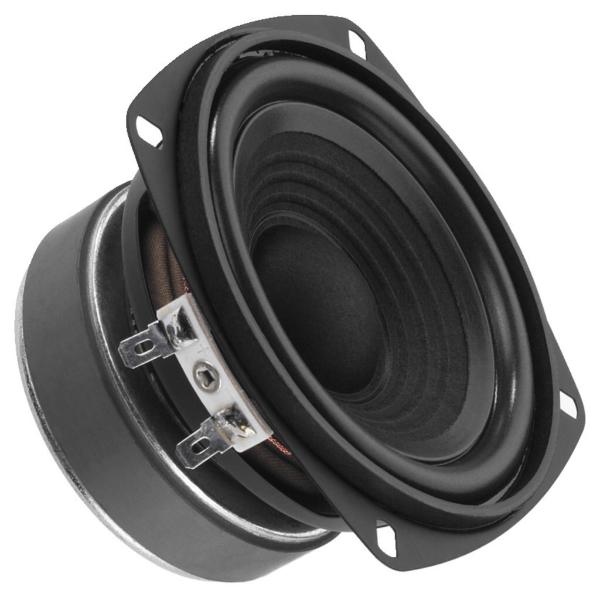

Monacor SP 60/4
Monacor SP 60/4
Model

Monacor SP 60/4

Rating
DIAM
4"
FS(Hz)
65
VAS(l)
6
QTS
0.49
PWR(W)
60
SPL(dB)
86
IMP(Ohm)
4x1
avb
UNK

Thiele-Small Parameters

Fs(Hz)
65
Vas(l)
6
Qts
0.49
Qms
2.1
Qes
0.639
Bl(Tm)
2.9
Mms(gr)
4
Cms(mm/N)
1.499
Rms(kg/s)
0.778
Le(mH)
0
Re(Ohm)
3.3
Sd(sq.mm)
5500
Vd(l)
0.011
X-max(mm)
2
X-mech(mm)
0

General Parameters

Diameter (inch)
4
Max Power(W.)
60
RMS Power(W.)
30
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
96
Mounting Depth (mm)
60
Magnet Diameter (mm)
80

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
