Model

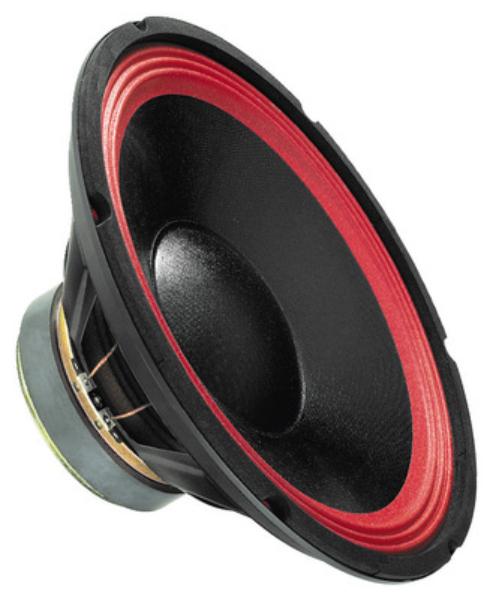

Monacor SP300PA
Rating
DIAM
12"
FS(Hz)
40
VAS(l)
150
QTS
0.46
PWR(W)
300
SPL(dB)
94.5
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
40
Vas(l)
150
Qts
0.46
Qms
2.56
Qes
0.52
Bl(Tm)
10.5
Mms(gr)
45
Cms(mm/N)
0.35
Rms(kg/s)
4.42
Le(mH)
0.5
Re(Ohm)
6.9
Sd(sq.mm)
51400
Vd(l)
0.167
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
300
RMS Power(W.)
175
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.78
Sensitivity(dB) 1-W
94.5
Sensitivity(dB) 2.8-V
95.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
305
Cutout Diameter (mm)
280
Mounting Depth (mm)
130
Magnet Diameter (mm)
125
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
