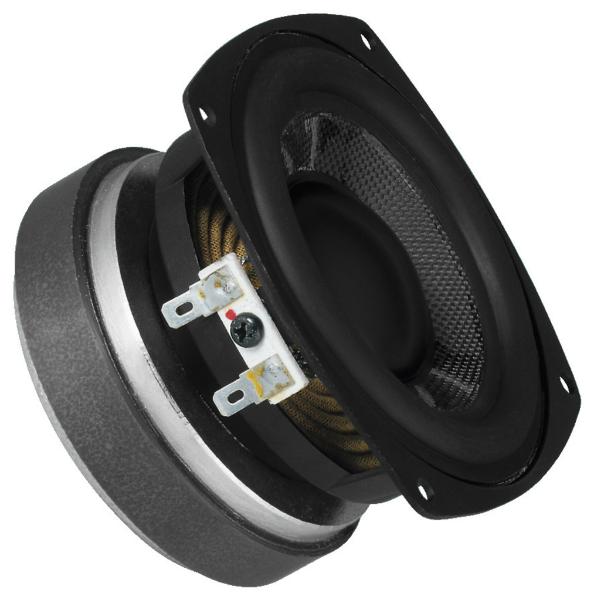

Monacor SPH-100C
Monacor SPH-100C
Model

Monacor SPH-100C

Rating
DIAM
4"
FS(Hz)
50
VAS(l)
6
QTS
0.44
PWR(W)
50
SPL(dB)
83.6
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
50
Vas(l)
6
Qts
0.44
Qms
3.53
Qes
0.5
Bl(Tm)
5.1
Mms(gr)
7
Cms(mm/N)
1.447
Rms(kg/s)
0.623
Le(mH)
0
Re(Ohm)
5.9
Sd(sq.mm)
5400
Vd(l)
0.022
X-max(mm)
4
X-mech(mm)
0

General Parameters

Diameter (inch)
4
Max Power(W.)
50
RMS Power(W.)
30
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83.6
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0.35
Total Diameter (mm)
0
Cutout Diameter (mm)
96
Mounting Depth (mm)
50
Magnet Diameter (mm)
90

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
