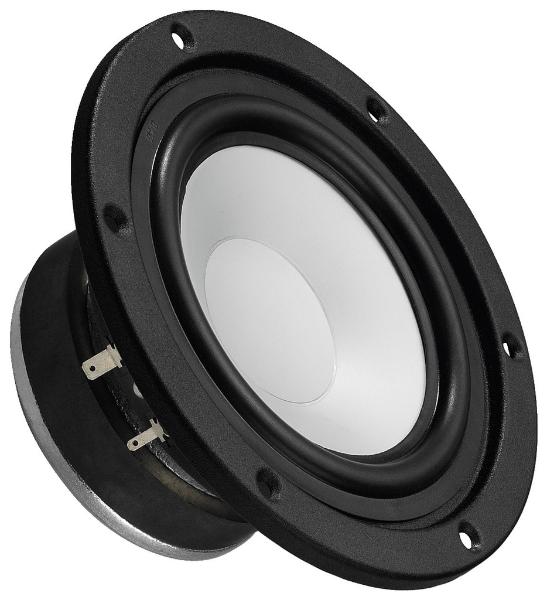

Monacor SPH-130AL
Monacor SPH-130AL
Model

Monacor SPH-130AL

Rating
DIAM
5"
FS(Hz)
48
VAS(l)
10.8
QTS
0.32
PWR(W)
50
SPL(dB)
87.3
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
48
Vas(l)
10.8
Qts
0.32
Qms
5.07
Qes
0.34
Bl(Tm)
7.2
Mms(gr)
9
Cms(mm/N)
1.2
Rms(kg/s)
0.535
Le(mH)
0.6
Re(Ohm)
6.4
Sd(sq.mm)
8000
Vd(l)
0.018
X-max(mm)
2
X-mech(mm)
0

General Parameters

Diameter (inch)
5
Max Power(W.)
50
RMS Power(W.)
100
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.34
Sensitivity(dB) 1-W
87.3
Sensitivity(dB) 2.8-V
88.3

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
155
Cutout Diameter (mm)
113
Mounting Depth (mm)
63
Magnet Diameter (mm)
89

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
