Model

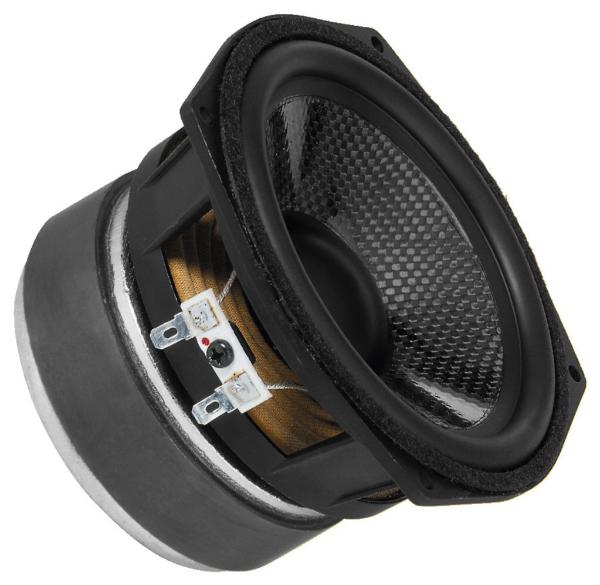

Monacor SPH-135C
Rating
DIAM
5"
FS(Hz)
40
VAS(l)
17
QTS
0.39
PWR(W)
80
SPL(dB)
85.9
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
40
Vas(l)
17
Qts
0.39
Qms
4.48
Qes
0.43
Bl(Tm)
6.5
Mms(gr)
12
Cms(mm/N)
1.319
Rms(kg/s)
0.67
Le(mH)
0
Re(Ohm)
6
Sd(sq.mm)
9533
Vd(l)
0.033
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
5
Max Power(W.)
80
RMS Power(W.)
50
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0.35
Total Diameter (mm)
0
Cutout Diameter (mm)
122
Mounting Depth (mm)
71
Magnet Diameter (mm)
100
Optimum Enclosures
Enclosures
Vented, BP6
