Model

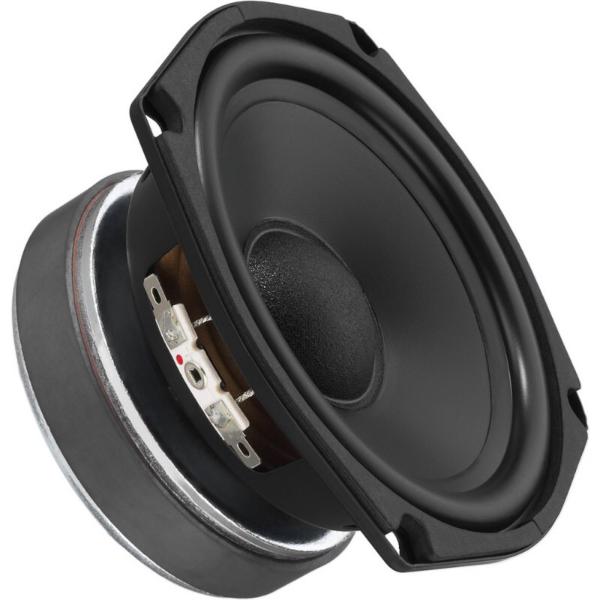

Monacor SPH-135TC
Rating
DIAM
5"
FS(Hz)
40
VAS(l)
16
QTS
0.42
PWR(W)
120
SPL(dB)
85.1
IMP(Ohm)
8x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
40
Vas(l)
16
Qts
0.42
Qms
3.44
Qes
0.48
Bl(Tm)
5.9
Mms(gr)
9
Cms(mm/N)
1.779
Rms(kg/s)
0.7
Le(mH)
0.6
Re(Ohm)
7.5
Sd(sq.mm)
9500
Vd(l)
0.214
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
5
Max Power(W.)
120
RMS Power(W.)
60
Number of Coils
2
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.21
Sensitivity(dB) 1-W
85.1
Sensitivity(dB) 2.8-V
85.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
138
Cutout Diameter (mm)
123
Mounting Depth (mm)
70
Magnet Diameter (mm)
100
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
