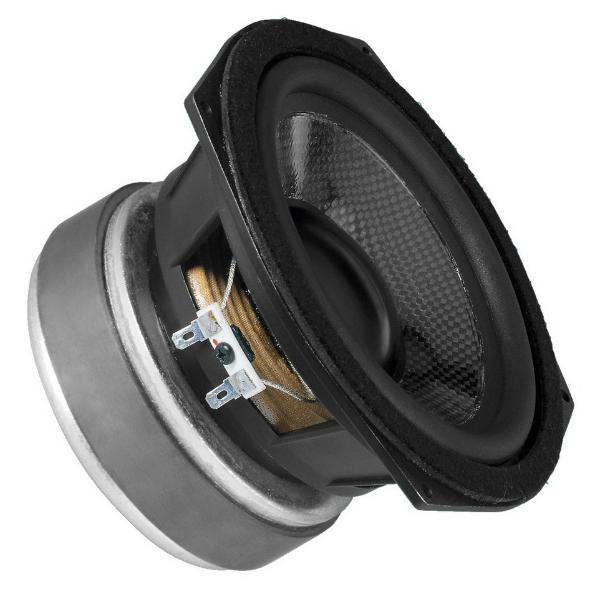

Monacor SPH-165CP
Monacor SPH-165CP
Model

Monacor SPH-165CP

Rating
DIAM
6"
FS(Hz)
30
VAS(l)
38
QTS
0.31
PWR(W)
120
SPL(dB)
86.8
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
30
Vas(l)
38
Qts
0.31
Qms
4.8
Qes
0.33
Bl(Tm)
7.6
Mms(gr)
17
Cms(mm/N)
1.71
Rms(kg/s)
0.66
Le(mH)
0.7
Re(Ohm)
5.9
Sd(sq.mm)
12517
Vd(l)
0.7
X-max(mm)
5
X-mech(mm)
0

General Parameters

Diameter (inch)
6
Max Power(W.)
120
RMS Power(W.)
80
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.3
Sensitivity(dB) 1-W
86.8
Sensitivity(dB) 2.8-V
88.1

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
165
Cutout Diameter (mm)
142
Mounting Depth (mm)
86
Magnet Diameter (mm)
120

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
