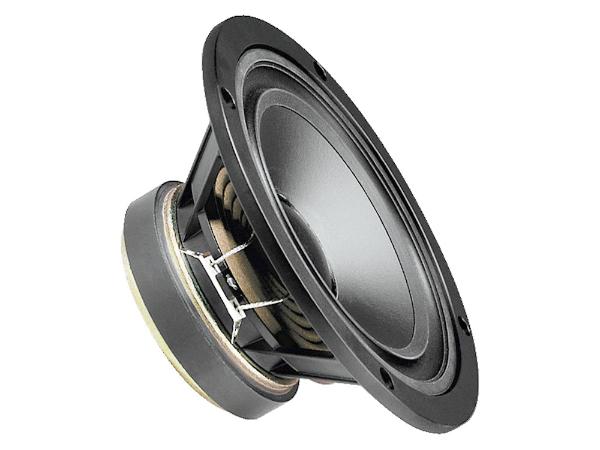

Monacor SPH-170
Monacor SPH-170
Model

Monacor SPH-170

Rating
DIAM
6"
FS(Hz)
38
VAS(l)
37
QTS
0.44
PWR(W)
80
SPL(dB)
90
IMP(Ohm)
8x1
avb
UNK

Thiele-Small Parameters

Fs(Hz)
38
Vas(l)
37
Qts
0.44
Qms
2.38
Qes
0.55
Bl(Tm)
5.9
Mms(gr)
13
Cms(mm/N)
1.43
Rms(kg/s)
0
Le(mH)
0.45
Re(Ohm)
6.2
Sd(sq.mm)
13700
Vd(l)
0
X-max(mm)
3
X-mech(mm)
0

General Parameters

Diameter (inch)
6
Max Power(W.)
80
RMS Power(W.)
50
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
90
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6
