Model

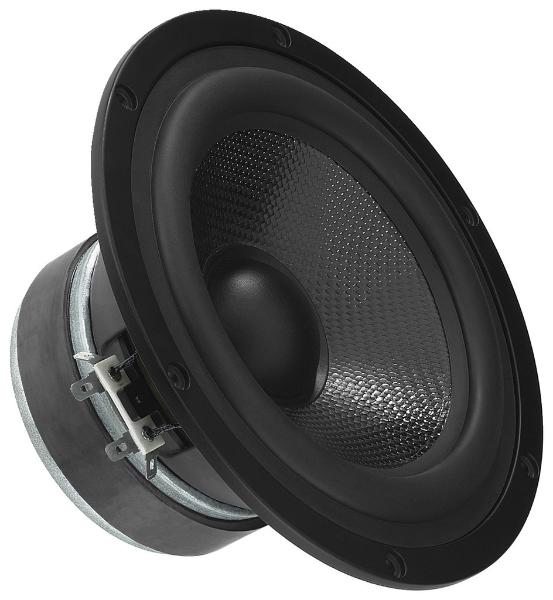

Monacor SPH-170C
Rating
DIAM
7"
FS(Hz)
38
VAS(l)
24
QTS
0.26
PWR(W)
120
SPL(dB)
88.7
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
38
Vas(l)
24
Qts
0.26
Qms
7.22
Qes
0.27
Bl(Tm)
9.4
Mms(gr)
16
Cms(mm/N)
1.068
Rms(kg/s)
0.543
Le(mH)
0.8
Re(Ohm)
6
Sd(sq.mm)
12700
Vd(l)
0.051
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
7
Max Power(W.)
120
RMS Power(W.)
60
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.47
Sensitivity(dB) 1-W
88.7
Sensitivity(dB) 2.8-V
89.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
180
Cutout Diameter (mm)
145
Mounting Depth (mm)
90
Magnet Diameter (mm)
100
Optimum Enclosures
Enclosures
Vented, BP6
