Model

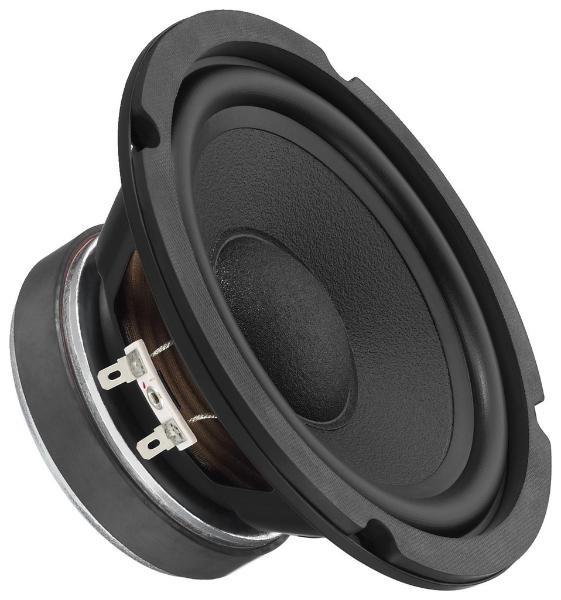

Monacor SPH-170TC
Rating
DIAM
7"
FS(Hz)
33
VAS(l)
31
QTS
0.41
PWR(W)
60
SPL(dB)
85.5
IMP(Ohm)
8x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33
Vas(l)
31
Qts
0.41
Qms
3
Qes
0.48
Bl(Tm)
5.2
Mms(gr)
16
Cms(mm/N)
1.38
Rms(kg/s)
1.1
Le(mH)
0.6
Re(Ohm)
3.8
Sd(sq.mm)
12585
Vd(l)
0.029
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
7
Max Power(W.)
60
RMS Power(W.)
40
Number of Coils
2
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.22
Sensitivity(dB) 1-W
85.5
Sensitivity(dB) 2.8-V
88.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
166
Cutout Diameter (mm)
142
Mounting Depth (mm)
74
Magnet Diameter (mm)
100
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
