Model

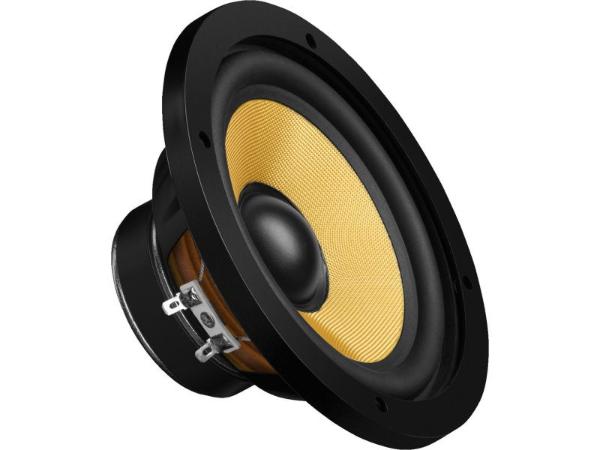

Monacor SPH-174KE
Rating
DIAM
6"
FS(Hz)
42
VAS(l)
26
QTS
0.51
PWR(W)
100
SPL(dB)
86.6
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
42
Vas(l)
26
Qts
0.51
Qms
2.6
Qes
0.64
Bl(Tm)
5.9
Mms(gr)
14
Cms(mm/N)
0.98
Rms(kg/s)
1.44
Le(mH)
0.43
Re(Ohm)
6.4
Sd(sq.mm)
13700
Vd(l)
0.041
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
100
RMS Power(W.)
50
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.29
Sensitivity(dB) 1-W
86.6
Sensitivity(dB) 2.8-V
87.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
168
Cutout Diameter (mm)
145
Mounting Depth (mm)
68
Magnet Diameter (mm)
80
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
