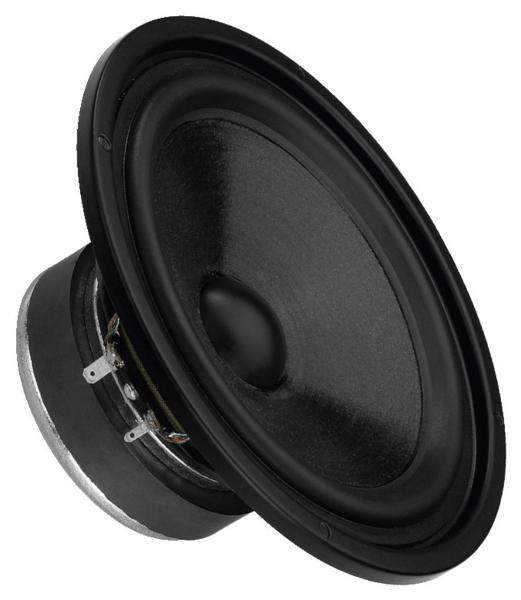

Monacor SPH-176
Monacor SPH-176
Model

Monacor SPH-176

Rating
DIAM
6"
FS(Hz)
39
VAS(l)
27
QTS
0.37
PWR(W)
120
SPL(dB)
87.5
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
39
Vas(l)
27
Qts
0.369
Qms
2.3
Qes
0.44
Bl(Tm)
7.7
Mms(gr)
14
Cms(mm/N)
1.01
Rms(kg/s)
1.51
Le(mH)
0.75
Re(Ohm)
6.6
Sd(sq.mm)
14000
Vd(l)
0.077
X-max(mm)
6
X-mech(mm)
0

General Parameters

Diameter (inch)
6
Max Power(W.)
120
RMS Power(W.)
70
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.35
Sensitivity(dB) 1-W
87.5
Sensitivity(dB) 2.8-V
88.3

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
175
Cutout Diameter (mm)
144
Mounting Depth (mm)
68
Magnet Diameter (mm)
90

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
