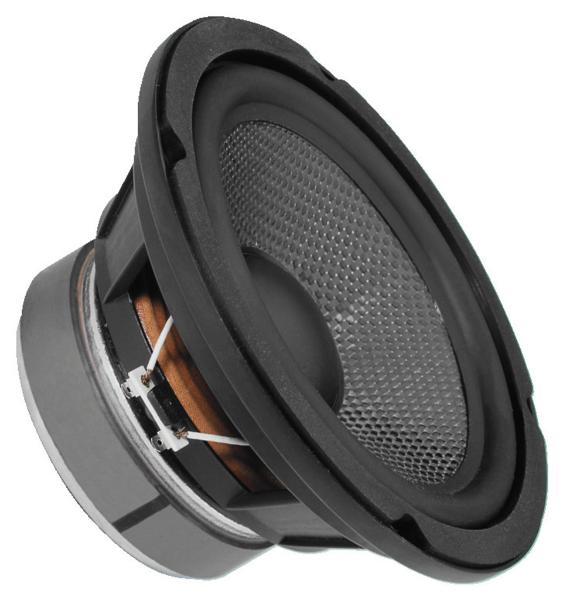

Monacor SPH-200CTC
Monacor SPH-200CTC
Model

Monacor SPH-200CTC

Rating
DIAM
8"
FS(Hz)
22
VAS(l)
75
QTS
0.22
PWR(W)
100
SPL(dB)
87.2
IMP(Ohm)
8x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
22
Vas(l)
75
Qts
0.22
Qms
4.91
Qes
0.23
Bl(Tm)
9
Cms(mm/N)
1.163
Rms(kg/s)
1.267
Le(mH)
1
Mms(gr)
45
Vd(l)
0.08
Sd(sq.mm)
21400
X-max(mm)
4
X-mech(mm)
0
Re(Ohm)
3

General Parameters

Diameter (inch)
8
Max Power(W.)
100
RMS Power(W.)
60
Number of Coils
2
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.33
Sensitivity(dB) 1-W
87.2
Sensitivity(dB) 2.8-V
91.5

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
211
Cutout Diameter (mm)
181
Mounting Depth (mm)
115
Magnet Diameter (mm)
120

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
