Model

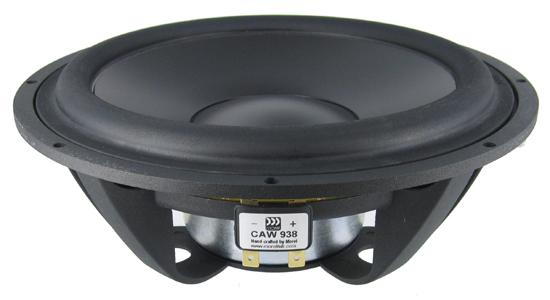

Morel CAW 938
Rating
DIAM
9"
FS(Hz)
29
VAS(l)
70
QTS
0.52
PWR(W)
1000
SPL(dB)
85.9
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
29
Vas(l)
70
Qts
0.52
Qms
2.3
Qes
0.67
Bl(Tm)
6.9
Mms(gr)
27
Cms(mm/N)
1.116
Rms(kg/s)
2.14
Le(mH)
0
Re(Ohm)
6.2
Sd(sq.mm)
21468
Vd(l)
0.101
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
9
Max Power(W.)
1000
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.25
Sensitivity(dB) 1-W
85.9
Sensitivity(dB) 2.8-V
87
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
222
Cutout Diameter (mm)
198
Mounting Depth (mm)
71
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP4, Closed
