Model

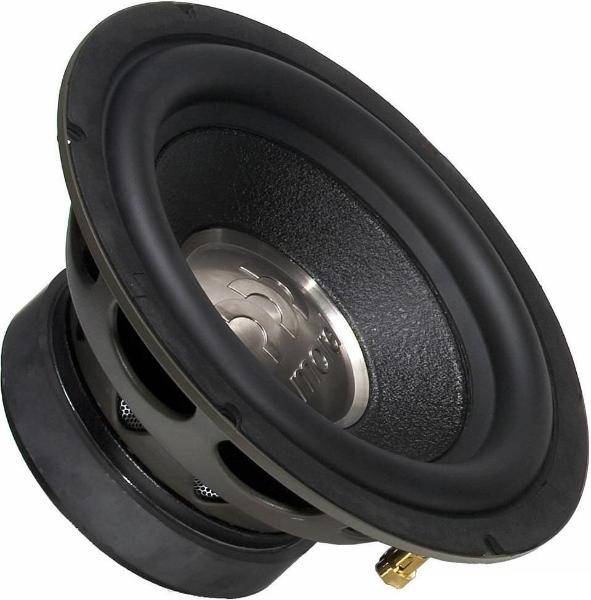

Morel PRIMO 104
Rating
DIAM
10"
FS(Hz)
35
VAS(l)
38
QTS
0.56
PWR(W)
600
SPL(dB)
85.6
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
38
Qts
0.56
Qms
3.1
Qes
0.68
Bl(Tm)
10.5
Mms(gr)
70
Cms(mm/N)
0.295
Rms(kg/s)
4.97
Le(mH)
1.1
Re(Ohm)
3
Sd(sq.mm)
32000
Vd(l)
0.256
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.23
Sensitivity(dB) 1-W
85.6
Sensitivity(dB) 2.8-V
89.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
263
Cutout Diameter (mm)
233
Mounting Depth (mm)
124
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP4, Closed
