Model

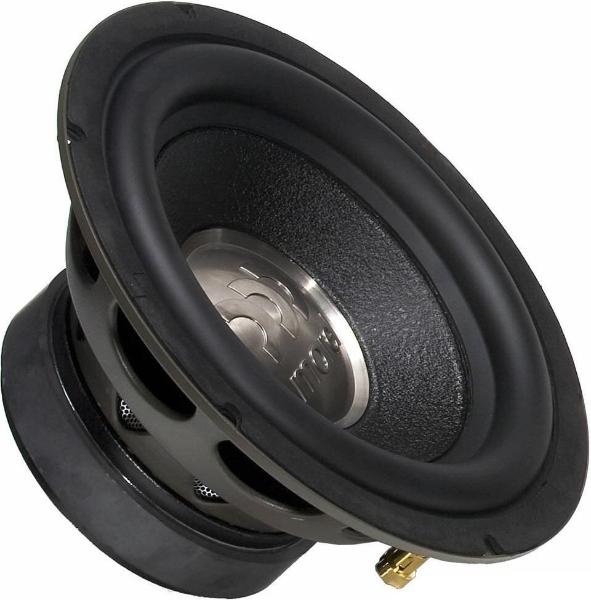

Morel PRIMO 124
Rating
DIAM
12"
FS(Hz)
28
VAS(l)
85
QTS
0.47
PWR(W)
700
SPL(dB)
87.1
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
28
Vas(l)
85
Qts
0.47
Qms
3.1
Qes
0.56
Bl(Tm)
10.2
Mms(gr)
111
Cms(mm/N)
0.28
Rms(kg/s)
6
Le(mH)
0
Re(Ohm)
3
Sd(sq.mm)
46265
Vd(l)
0.37
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
700
RMS Power(W.)
350
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
272
Mounting Depth (mm)
136
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
