Model

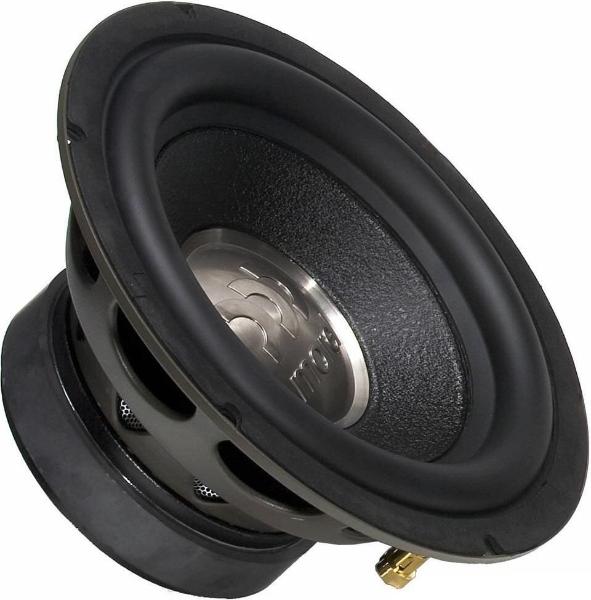

Morel PRIMO 804
Rating
DIAM
8"
FS(Hz)
43
VAS(l)
13.5
QTS
0.6
PWR(W)
500
SPL(dB)
83.7
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
43
Vas(l)
13.5
Qts
0.6
Qms
4
Qes
0.706
Bl(Tm)
9.1
Mms(gr)
65
Cms(mm/N)
0.211
Rms(kg/s)
4.39
Le(mH)
0
Re(Ohm)
3.3
Sd(sq.mm)
21240
Vd(l)
0.17
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83.7
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
199
Mounting Depth (mm)
110
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP4, BP6P, Closed, Vented
