Model

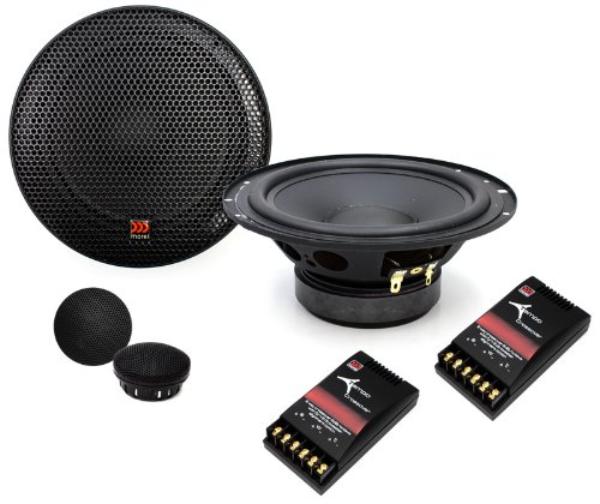

Morel TEMPO 6
Rating
DIAM
6"
FS(Hz)
65
VAS(l)
7.06
QTS
0.61
PWR(W)
280
SPL(dB)
85.7
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
65
Vas(l)
7.1
Qts
0.61
Qms
2.643
Qes
0.793
Bl(Tm)
5.5
Mms(gr)
16
Cms(mm/N)
0.351
Rms(kg/s)
2.43
Le(mH)
0
Re(Ohm)
3.7
Sd(sq.mm)
11909
Vd(l)
0.036
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
280
RMS Power(W.)
120
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.24
Sensitivity(dB) 1-W
85.7
Sensitivity(dB) 2.8-V
89
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
165
Cutout Diameter (mm)
142
Mounting Depth (mm)
62
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP4, BP6P, Closed, Vented
