Model

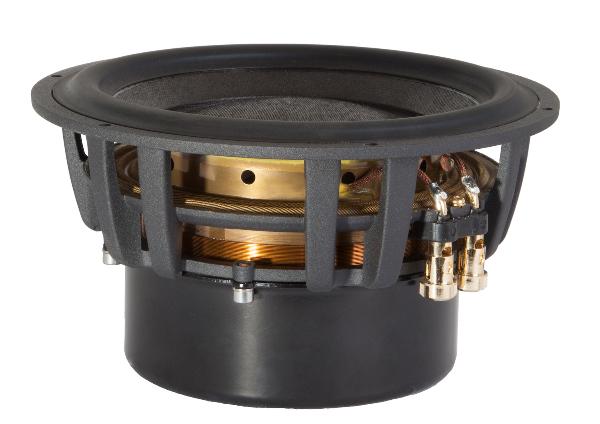

Morel TICW 1058FT
Rating
DIAM
10"
FS(Hz)
25
VAS(l)
82
QTS
0.3
PWR(W)
3000
SPL(dB)
87.5
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
25
Vas(l)
82
Qts
0.3
Qms
3.6
Qes
0.35
Bl(Tm)
15.7
Mms(gr)
81
Cms(mm/N)
0.48
Rms(kg/s)
3.6
Le(mH)
0.52
Re(Ohm)
6.3
Sd(sq.mm)
34300
Vd(l)
0.36
X-max(mm)
11
X-mech(mm)
20
General Parameters
Diameter (inch)
10
Max Power(W.)
3000
RMS Power(W.)
600
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.35
Sensitivity(dB) 1-W
87.5
Sensitivity(dB) 2.8-V
88.5
Mounting Information
Speaker Displacement (l)
2
Total Diameter (mm)
263
Cutout Diameter (mm)
234
Mounting Depth (mm)
142
Magnet Diameter (mm)
120
Optimum Enclosures
Enclosures
BP4, BP6P, Closed, Vented
