Model

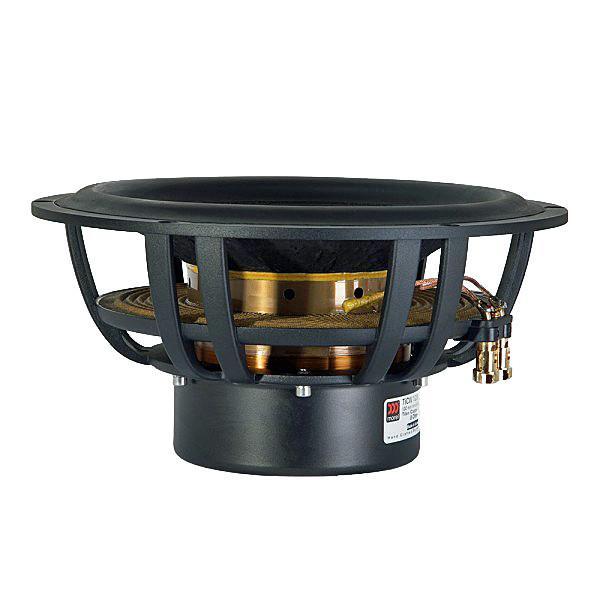

Morel TICW 1258FT
Rating
DIAM
12"
FS(Hz)
18
VAS(l)
191
QTS
0.27
PWR(W)
3000
SPL(dB)
87.7
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
18
Vas(l)
191
Qts
0.27
Qms
3.4
Qes
0.29
Bl(Tm)
16.6
Mms(gr)
101
Cms(mm/N)
0.774
Rms(kg/s)
3.39
Le(mH)
0.62
Re(Ohm)
7.2
Sd(sq.mm)
41500
Vd(l)
0.436
X-max(mm)
11
X-mech(mm)
20
General Parameters
Diameter (inch)
12
Max Power(W.)
3000
RMS Power(W.)
600
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.37
Sensitivity(dB) 1-W
87.7
Sensitivity(dB) 2.8-V
88.1
Mounting Information
Speaker Displacement (l)
3
Total Diameter (mm)
305
Cutout Diameter (mm)
270
Mounting Depth (mm)
146
Magnet Diameter (mm)
150
Optimum Enclosures
Enclosures
BP4, BP6P, Closed, Vented
