Model

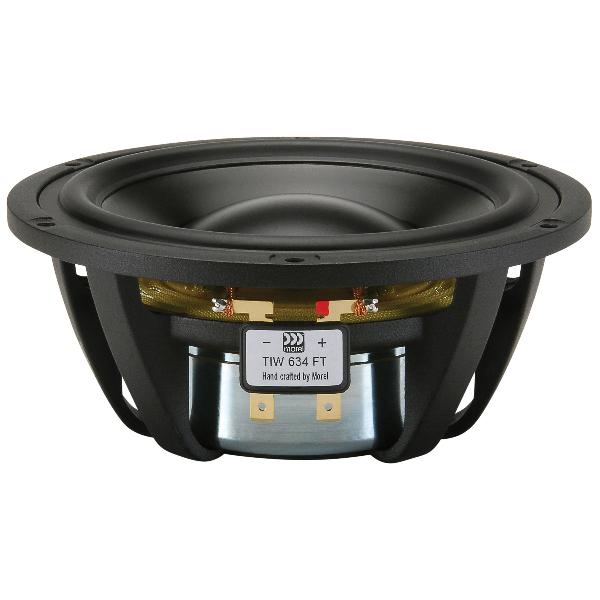

Morel TIW 634FT
Rating
DIAM
6"
FS(Hz)
40
VAS(l)
19.7
QTS
0.39
PWR(W)
1000
SPL(dB)
86.5
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
40
Vas(l)
19.7
Qts
0.39
Qms
4.3
Qes
0.429
Bl(Tm)
5.8
Mms(gr)
16
Cms(mm/N)
1.008
Rms(kg/s)
0.918
Le(mH)
0.45
Re(Ohm)
3.6
Sd(sq.mm)
11900
Vd(l)
0.095
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
1000
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.28
Sensitivity(dB) 1-W
86.5
Sensitivity(dB) 2.8-V
90
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
160
Cutout Diameter (mm)
140
Mounting Depth (mm)
63
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP6P, Vented
