Model

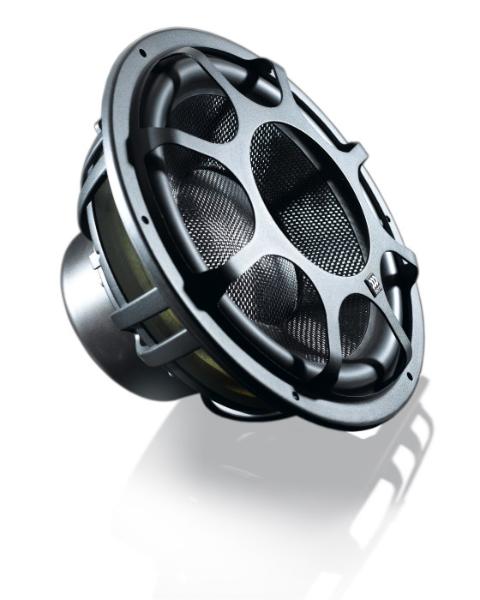

Morel ULTIMO 124
Rating
DIAM
12"
FS(Hz)
26
VAS(l)
73.77
QTS
0.42
PWR(W)
3000
SPL(dB)
84.6
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
26
Vas(l)
73.8
Qts
0.42
Qms
1.69
Qes
0.69
Bl(Tm)
12
Mms(gr)
125
Cms(mm/N)
0.263
Rms(kg/s)
13.58
Le(mH)
1
Re(Ohm)
3.7
Sd(sq.mm)
44800
Vd(l)
0.56
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
3000
RMS Power(W.)
1000
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.18
Sensitivity(dB) 1-W
84.6
Sensitivity(dB) 2.8-V
87.9
Mounting Information
Speaker Displacement (l)
2.6
Total Diameter (mm)
305
Cutout Diameter (mm)
270
Mounting Depth (mm)
141
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP4, Closed
