Model

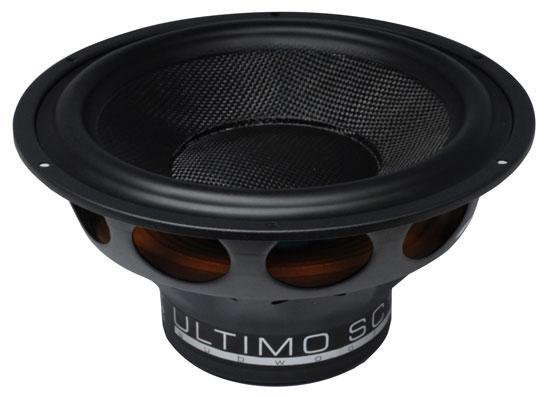

Morel ULTIMO-SC102
Rating
DIAM
10"
FS(Hz)
33
VAS(l)
42
QTS
0.38
PWR(W)
2000
SPL(dB)
86.2
IMP(Ohm)
2x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33
Vas(l)
42
Qts
0.38
Qms
1.8
Qes
0.49
Bl(Tm)
7.3
Mms(gr)
102
Cms(mm/N)
0.25
Rms(kg/s)
11.25
Le(mH)
0.27
Re(Ohm)
1.3
Sd(sq.mm)
34600
Vd(l)
0.325
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
2000
RMS Power(W.)
600
Number of Coils
1
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.26
Sensitivity(dB) 1-W
86.2
Sensitivity(dB) 2.8-V
94.1
Mounting Information
Speaker Displacement (l)
2.27
Total Diameter (mm)
267
Cutout Diameter (mm)
0
Mounting Depth (mm)
137
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
