Model

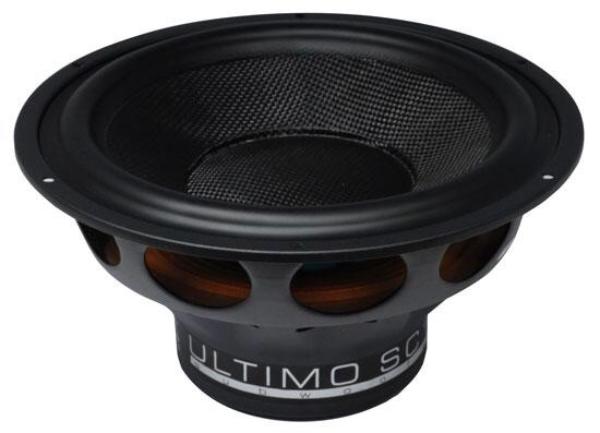

Morel ULTIMO-SC122
Rating
DIAM
12"
FS(Hz)
23
VAS(l)
121
QTS
0.36
PWR(W)
2000
SPL(dB)
87
IMP(Ohm)
2x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
23
Vas(l)
121
Qts
0.36
Qms
1.73
Qes
0.45
Bl(Tm)
6.6
Mms(gr)
103
Cms(mm/N)
0.464
Rms(kg/s)
8.7
Le(mH)
0.27
Re(Ohm)
1.3
Sd(sq.mm)
42880
Vd(l)
0.407
X-max(mm)
10
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2000
RMS Power(W.)
600
Number of Coils
1
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.32
Sensitivity(dB) 1-W
87
Sensitivity(dB) 2.8-V
94.9
Mounting Information
Speaker Displacement (l)
2.6
Total Diameter (mm)
305
Cutout Diameter (mm)
263
Mounting Depth (mm)
145
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP4, Closed
