Model

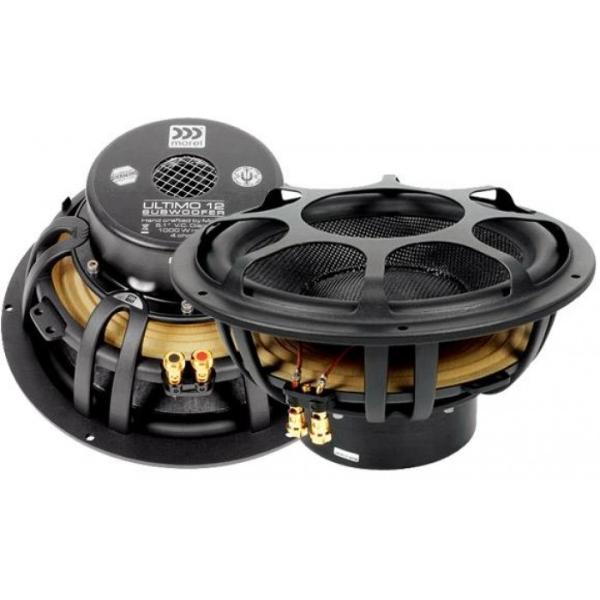

Morel ULTIMO TITANIUM 124
Rating
DIAM
12"
FS(Hz)
24
VAS(l)
103
QTS
0.46
PWR(W)
3000
SPL(dB)
86.4
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
24
Vas(l)
103
Qts
0.46
Qms
6.53
Qes
0.495
Bl(Tm)
0
Mms(gr)
134
Cms(mm/N)
0.328
Rms(kg/s)
3.09
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
47055
Vd(l)
0.588
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
3000
RMS Power(W.)
1000
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.28
Sensitivity(dB) 1-W
86.4
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.6
Total Diameter (mm)
0
Cutout Diameter (mm)
270
Mounting Depth (mm)
141
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
