Model

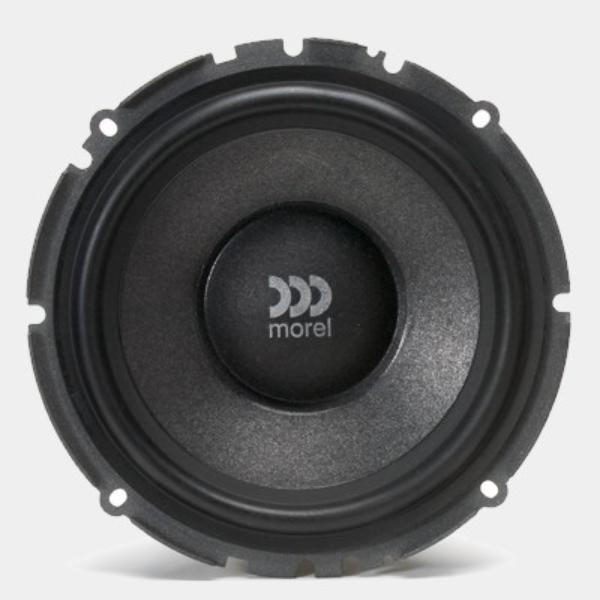

Morel VIRTUS MW6
Rating
DIAM
6"
FS(Hz)
65
VAS(l)
11.4
QTS
0.74
PWR(W)
300
SPL(dB)
86.9
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
65
Vas(l)
11.4
Qts
0.74
Qms
2.96
Qes
0.987
Bl(Tm)
3.4
Mms(gr)
12
Cms(mm/N)
0.5
Rms(kg/s)
1.656
Le(mH)
0.33
Re(Ohm)
2.3
Sd(sq.mm)
12679
Vd(l)
0.044
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
300
RMS Power(W.)
140
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.31
Sensitivity(dB) 1-W
86.9
Sensitivity(dB) 2.8-V
92.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
165
Cutout Diameter (mm)
141
Mounting Depth (mm)
61
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
