Model

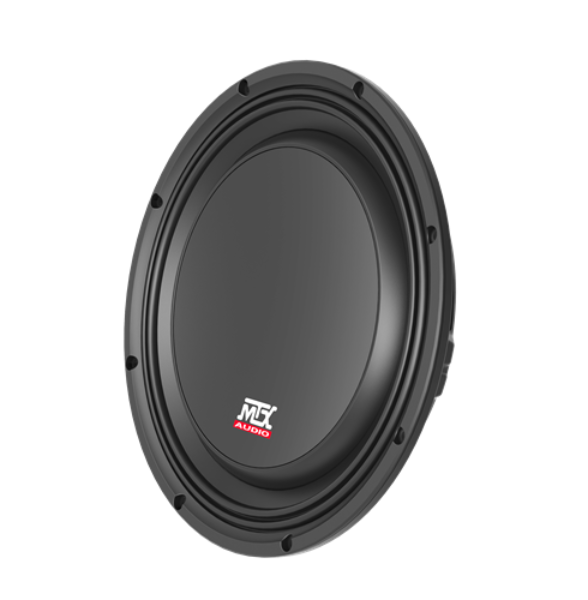

MTX 3510-04S
Rating
DIAM
10"
FS(Hz)
35
VAS(l)
25.3
QTS
0.63
PWR(W)
600
SPL(dB)
83.4
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
25.3
Qts
0.63
Qms
3.82
Qes
0.76
Bl(Tm)
12.5
Mms(gr)
172
Cms(mm/N)
0.172
Rms(kg/s)
9.923
Le(mH)
0
Re(Ohm)
3.1
Sd(sq.mm)
39400
Vd(l)
0.402
X-max(mm)
10
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.14
Sensitivity(dB) 1-W
83.4
Sensitivity(dB) 2.8-V
87.5
Mounting Information
Speaker Displacement (l)
0.402
Total Diameter (mm)
264
Cutout Diameter (mm)
232
Mounting Depth (mm)
86
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
