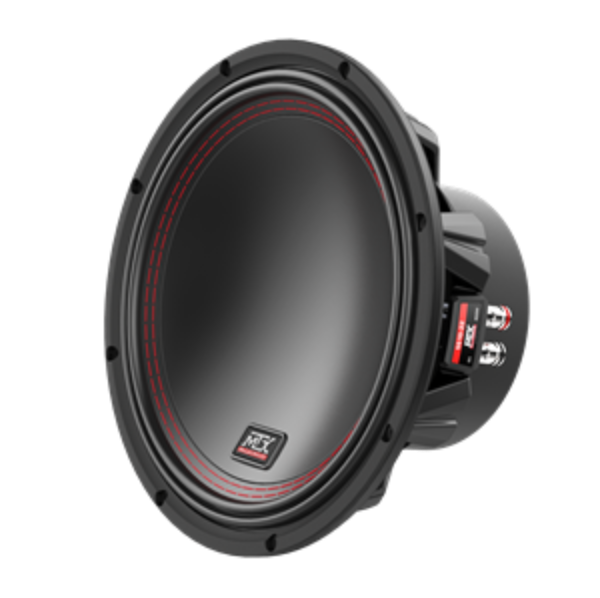

MTX 5510-44
MTX 5510-44
Model

MTX 5510-44

Rating
DIAM
10"
FS(Hz)
33.6
VAS(l)
29.2
QTS
0.63
PWR(W)
800
SPL(dB)
83.3
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
33.6
Vas(l)
29.2
Qts
0.63
Qms
3.102
Qes
0.791
Bl(Tm)
8.8
Mms(gr)
168
Cms(mm/N)
0.133
Rms(kg/s)
11.461
Le(mH)
0
Re(Ohm)
1.7
Sd(sq.mm)
38130
Vd(l)
0.581
X-max(mm)
15
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83.3
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
232
Mounting Depth (mm)
143
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
