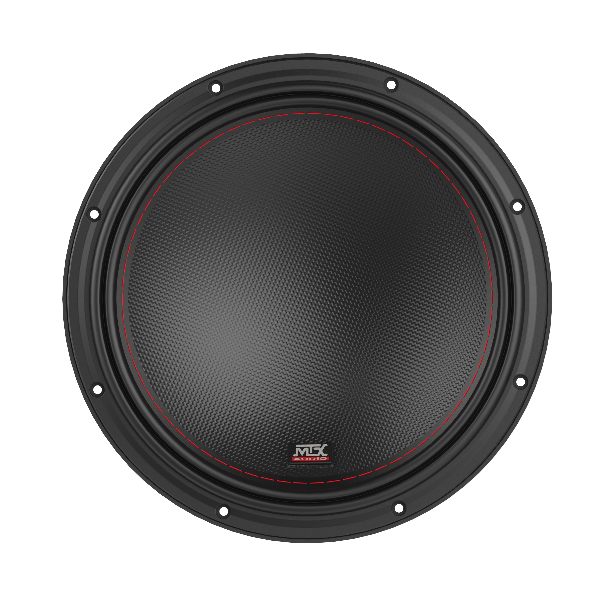

Model
MTX 7512-44
Rating
DIAM
12"
FS(Hz)
32
VAS(l)
48.9
QTS
0.65
PWR(W)
1500
SPL(dB)
85.3
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32
Vas(l)
48.9
Qts
0.649
Qms
4.3
Qes
0.764
Bl(Tm)
9.8
Mms(gr)
222
Cms(mm/N)
0.109
Rms(kg/s)
10.38
Le(mH)
0
Re(Ohm)
1.6
Sd(sq.mm)
56200
Vd(l)
0.942
X-max(mm)
17
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1500
RMS Power(W.)
750
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.2
Sensitivity(dB) 1-W
85.3
Sensitivity(dB) 2.8-V
92
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
314
Cutout Diameter (mm)
282
Mounting Depth (mm)
189
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
