Model

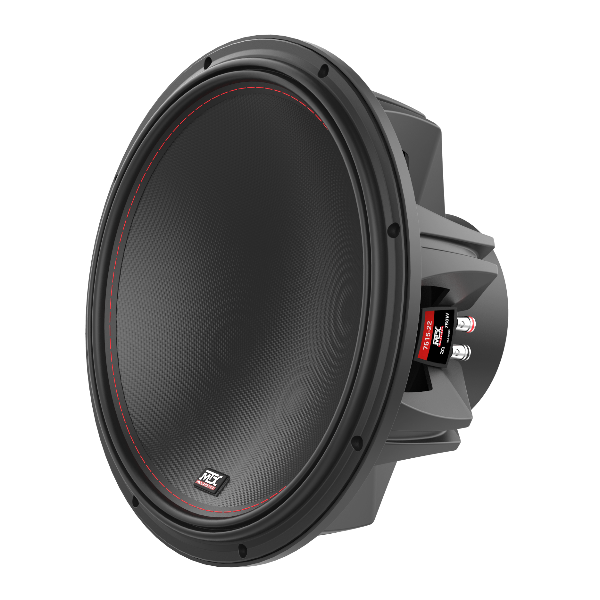

MTX 7515-22
Rating
DIAM
15"
FS(Hz)
26
VAS(l)
144.8
QTS
0.59
PWR(W)
1500
SPL(dB)
87.7
IMP(Ohm)
2x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
26
Vas(l)
144.8
Qts
0.59
Qms
5.61
Qes
0.659
Bl(Tm)
7.9
Mms(gr)
313
Cms(mm/N)
0.12
Rms(kg/s)
8.66
Le(mH)
0
Re(Ohm)
0.8
Sd(sq.mm)
89960
Vd(l)
1.502
X-max(mm)
17
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1500
RMS Power(W.)
750
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.37
Sensitivity(dB) 1-W
87.7
Sensitivity(dB) 2.8-V
97.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
392
Cutout Diameter (mm)
352
Mounting Depth (mm)
211
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
