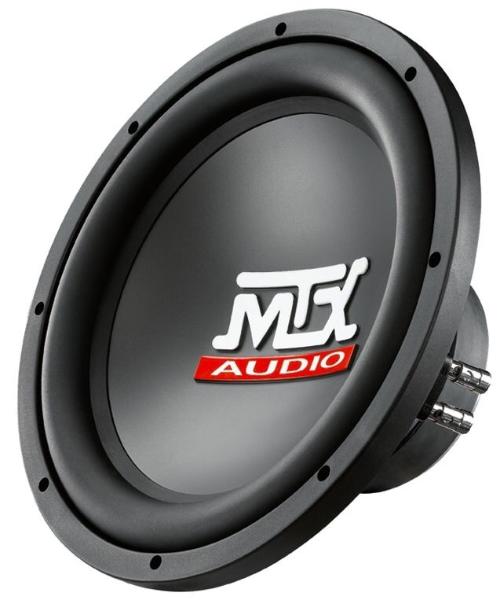

MTX RT12-44
MTX RT12-44
Model

MTX RT12-44

Rating
DIAM
12"
FS(Hz)
28
VAS(l)
68
QTS
0.7
PWR(W)
750
SPL(dB)
84.7
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
28
Vas(l)
68
Qts
0.7
Qms
6.6
Qes
0.78
Bl(Tm)
7.8
Mms(gr)
165
Cms(mm/N)
0.196
Rms(kg/s)
4.38
Le(mH)
0
Re(Ohm)
1.6
Sd(sq.mm)
51000
Vd(l)
0.816
X-max(mm)
16
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
750
RMS Power(W.)
250
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.18
Sensitivity(dB) 1-W
84.7
Sensitivity(dB) 2.8-V
91.6

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
316
Cutout Diameter (mm)
278
Mounting Depth (mm)
135
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
