Model

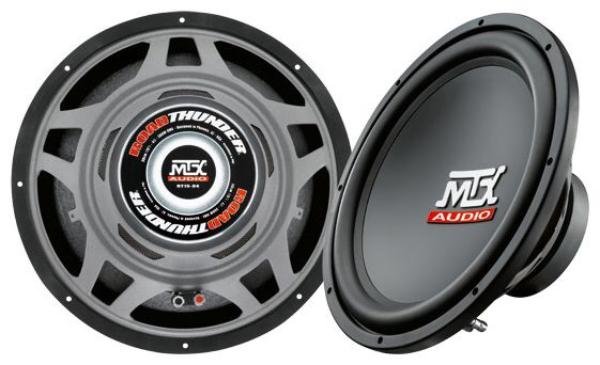

MTX RT15-04
Rating
DIAM
15"
FS(Hz)
20
VAS(l)
223
QTS
0.48
PWR(W)
600
SPL(dB)
87.2
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
20
Vas(l)
223
Qts
0.48
Qms
6.1
Qes
0.52
Bl(Tm)
15.3
Mms(gr)
263
Cms(mm/N)
0.231
Rms(kg/s)
5.42
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
83000
Vd(l)
1.204
X-max(mm)
15
X-mech(mm)
16
General Parameters
Diameter (inch)
15
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.33
Sensitivity(dB) 1-W
87.2
Sensitivity(dB) 2.8-V
90.7
Mounting Information
Speaker Displacement (l)
6.5
Total Diameter (mm)
391
Cutout Diameter (mm)
352
Mounting Depth (mm)
166
Magnet Diameter (mm)
150
Optimum Enclosures
Enclosures
Closed, BP4
