Model

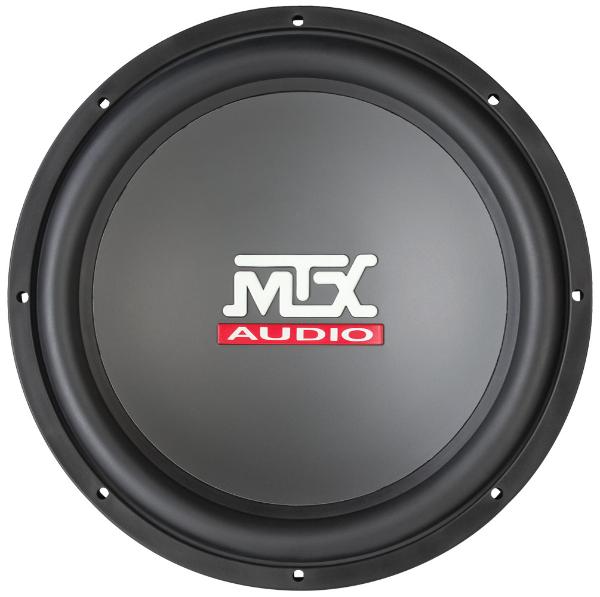

MTX RTS15-04
Rating
DIAM
15"
FS(Hz)
25.7
VAS(l)
165.2
QTS
0.62
PWR(W)
600
SPL(dB)
87.8
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
25.7
Vas(l)
165.2
Qts
0.621
Qms
5.2
Qes
0.705
Bl(Tm)
14
Mms(gr)
226
Cms(mm/N)
0.17
Rms(kg/s)
7.01
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
84000
Vd(l)
0.899
X-max(mm)
11
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.38
Sensitivity(dB) 1-W
87.8
Sensitivity(dB) 2.8-V
91.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
389
Cutout Diameter (mm)
348
Mounting Depth (mm)
162
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
