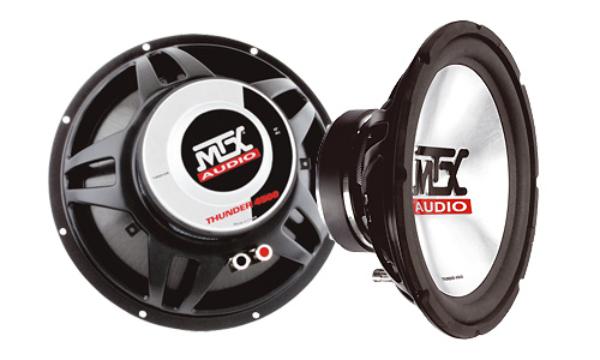

MTX T4510-04(THUNDER 4500)
MTX T4510-04(THUNDER 4500)
Model

MTX T4510-04(THUNDER 4500)

Rating
DIAM
10"
FS(Hz)
35.4
VAS(l)
47.3
QTS
0.63
PWR(W)
450
SPL(dB)
86.7
IMP(Ohm)
4x1
avb
UNK

Thiele-Small Parameters

Fs(Hz)
35.4
Vas(l)
47.3
Qts
0.634
Qms
7.88
Qes
0.689
Bl(Tm)
9.5
Mms(gr)
87
Cms(mm/N)
0.233
Rms(kg/s)
2.447
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
38000
Vd(l)
0.357
X-max(mm)
9
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
450
RMS Power(W.)
225
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.29
Sensitivity(dB) 1-W
86.7
Sensitivity(dB) 2.8-V
90.7

Mounting Information

Speaker Displacement (l)
21.8
Total Diameter (mm)
0
Cutout Diameter (mm)
232
Mounting Depth (mm)
117
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
