Model

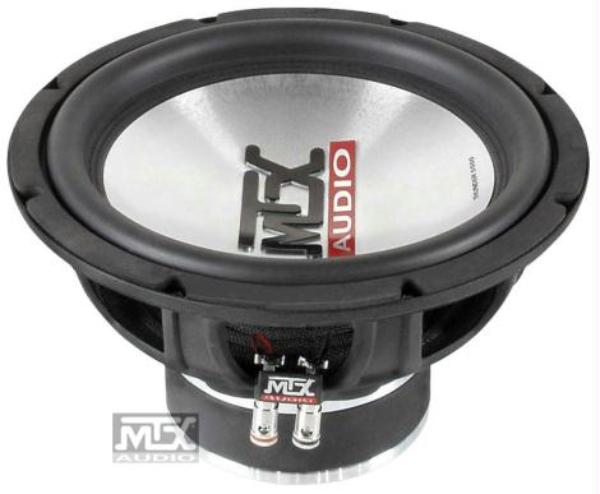

MTX T5510-04
Rating
DIAM
10"
FS(Hz)
35.3
VAS(l)
30.6
QTS
0.67
PWR(W)
600
SPL(dB)
84.2
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
35.3
Vas(l)
30.6
Qts
0.67
Qms
4.37
Qes
0.79
Bl(Tm)
11.4
Mms(gr)
140
Cms(mm/N)
0.145
Rms(kg/s)
7.13
Le(mH)
0
Re(Ohm)
3.3
Sd(sq.mm)
38545
Vd(l)
0.52
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.16
Sensitivity(dB) 1-W
84.2
Sensitivity(dB) 2.8-V
88.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
272
Cutout Diameter (mm)
232
Mounting Depth (mm)
156
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
