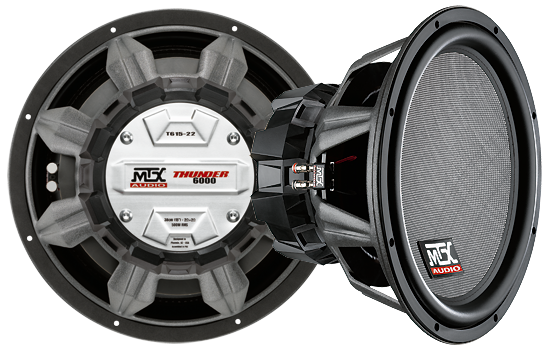

MTX T615-44
MTX T615-44
Model

MTX T615-44

Rating
DIAM
15"
FS(Hz)
26.2
VAS(l)
113
QTS
0.5
PWR(W)
500
SPL(dB)
87.5
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
26.2
Vas(l)
113
Qts
0.5
Qms
5.3
Qes
0.552
Bl(Tm)
25.4
Mms(gr)
355
Cms(mm/N)
0.104
Rms(kg/s)
355.1
Le(mH)
0
Re(Ohm)
6.1
Sd(sq.mm)
87600
Vd(l)
1.402
X-max(mm)
16
X-mech(mm)
0

General Parameters

Diameter (inch)
15
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.35
Sensitivity(dB) 1-W
87.5
Sensitivity(dB) 2.8-V
88.7

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
392
Cutout Diameter (mm)
350
Mounting Depth (mm)
221
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
