Model

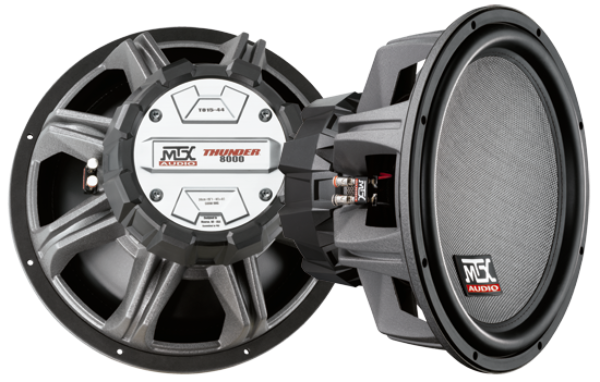

MTX T815-44
Rating
DIAM
15"
FS(Hz)
33
VAS(l)
73
QTS
0.64
PWR(W)
1800
SPL(dB)
87
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33
Vas(l)
73
Qts
0.644
Qms
3.3
Qes
0.801
Bl(Tm)
21.8
Mms(gr)
275
Cms(mm/N)
0.08
Rms(kg/s)
17.27
Le(mH)
0
Re(Ohm)
6.5
Sd(sq.mm)
80425
Vd(l)
1.29
X-max(mm)
16
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1800
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.32
Sensitivity(dB) 1-W
87
Sensitivity(dB) 2.8-V
87.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
