Model

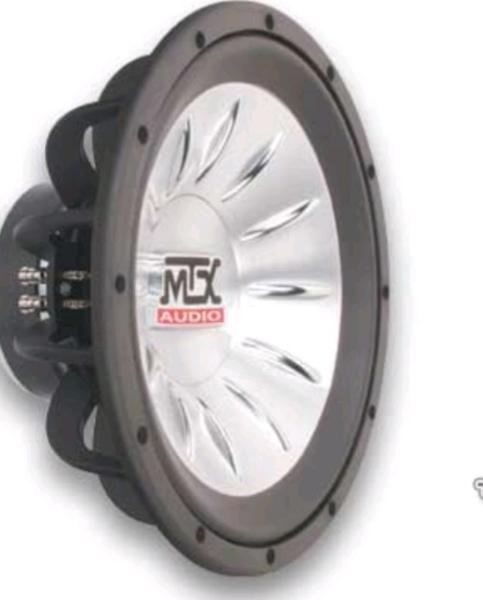

MTX T8154
Rating
DIAM
15"
FS(Hz)
24.6
VAS(l)
145.5
QTS
0.37
PWR(W)
1500
SPL(dB)
83.9
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
24.6
Vas(l)
145.5
Qts
0.37
Qms
5.7
Qes
0.4
Bl(Tm)
21.8
Mms(gr)
322
Cms(mm/N)
0.13
Rms(kg/s)
8.73
Le(mH)
3.8
Re(Ohm)
4
Sd(sq.mm)
88835
Vd(l)
1.11
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1500
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.52
Sensitivity(dB) 1-W
83.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
