Model

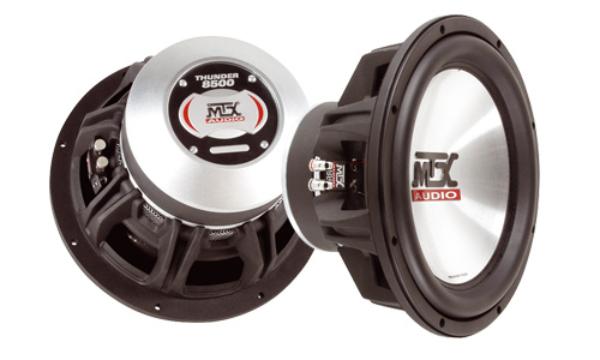

MTX T8512-04
Rating
DIAM
12"
FS(Hz)
36.4
VAS(l)
36.5
QTS
0.58
PWR(W)
1000
SPL(dB)
85.7
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
36.4
Vas(l)
36.5
Qts
0.58
Qms
2.98
Qes
0.72
Bl(Tm)
15.3
Mms(gr)
230
Cms(mm/N)
0.083
Rms(kg/s)
17.664
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
55646
Vd(l)
1.202
X-max(mm)
22
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.7
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
280
Mounting Depth (mm)
197
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
