Model

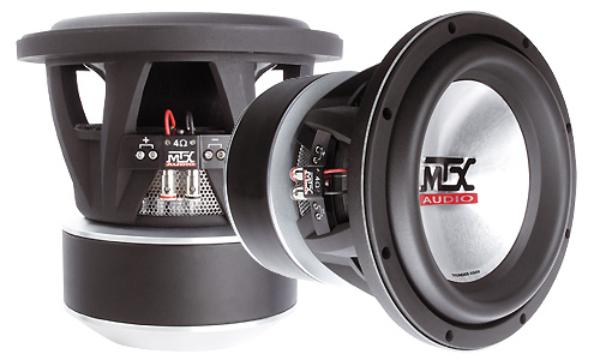

MTX T9510-44
Rating
DIAM
10"
FS(Hz)
41.1
VAS(l)
13.1
QTS
0.83
PWR(W)
750
SPL(dB)
80.9
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
41.1
Vas(l)
13.1
Qts
0.831
Qms
3.11
Qes
1.13
Bl(Tm)
9.2
Mms(gr)
203
Cms(mm/N)
0.074
Rms(kg/s)
16.88
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
35345
Vd(l)
0.906
X-max(mm)
26
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
750
RMS Power(W.)
750
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.08
Sensitivity(dB) 1-W
80.9
Sensitivity(dB) 2.8-V
87.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
280
Cutout Diameter (mm)
232
Mounting Depth (mm)
236
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
