Model

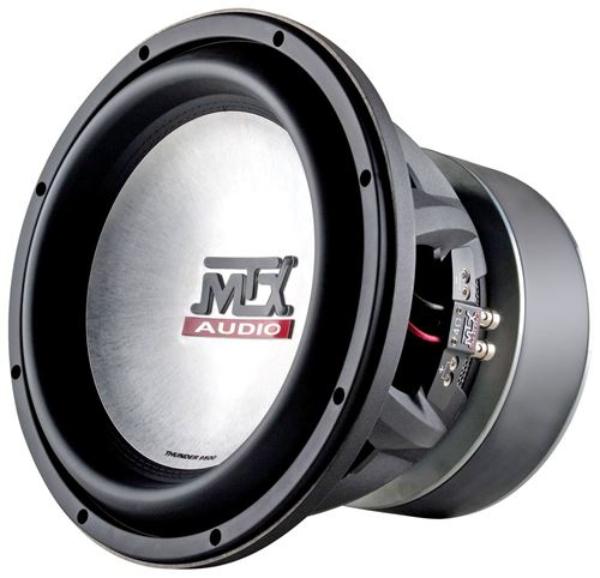

MTX T9515-04
Rating
DIAM
15"
FS(Hz)
30.6
VAS(l)
75.3
QTS
0.57
PWR(W)
2000
SPL(dB)
86.9
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
30.6
Vas(l)
75.3
Qts
0.57
Qms
3.68
Qes
0.68
Bl(Tm)
19.9
Mms(gr)
382
Cms(mm/N)
0.071
Rms(kg/s)
19.948
Le(mH)
0
Re(Ohm)
3.7
Sd(sq.mm)
86504
Vd(l)
2.215
X-max(mm)
26
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.31
Sensitivity(dB) 1-W
86.9
Sensitivity(dB) 2.8-V
90.3
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
400
Cutout Diameter (mm)
352
Mounting Depth (mm)
273
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
