Model

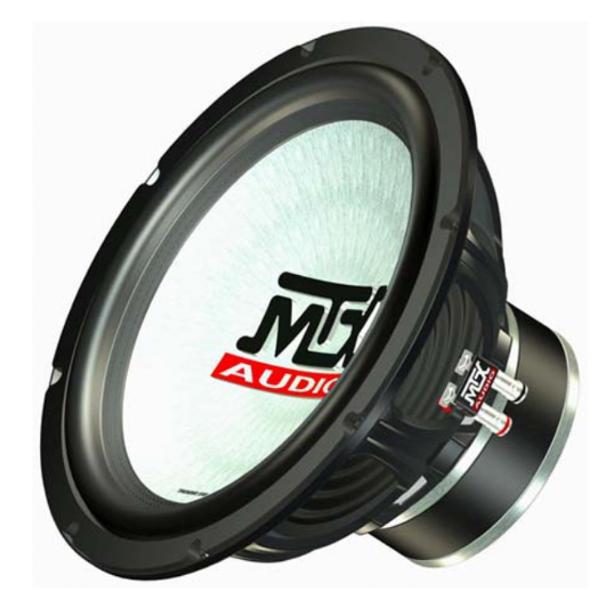

MTX THUNDER T5512-04
Rating
DIAM
12"
FS(Hz)
29.3
VAS(l)
67.5
QTS
0.58
PWR(W)
300
SPL(dB)
85.9
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
29.3
Vas(l)
67.5
Qts
0.58
Qms
4.48
Qes
0.67
Bl(Tm)
13
Mms(gr)
185
Cms(mm/N)
0.16
Rms(kg/s)
7.58
Le(mH)
0
Re(Ohm)
3.3
Sd(sq.mm)
54543
Vd(l)
0.734
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.24
Sensitivity(dB) 1-W
85.9
Sensitivity(dB) 2.8-V
89.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
321
Cutout Diameter (mm)
281
Mounting Depth (mm)
169
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
