Model

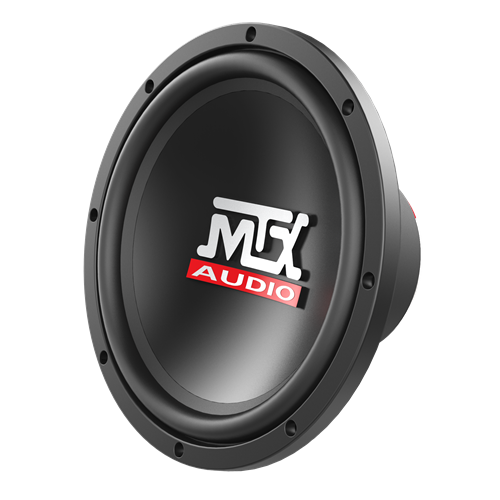

MTX TN10-04
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
10"
FS(Hz)
35.4
VAS(l)
34.7
QTS
0.62
PWR(W)
0
SPL(dB)
85.1
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35.4
Vas(l)
34.7
Qts
0.62
Qms
4.7
Qes
0.72
Bl(Tm)
10.7
Mms(gr)
112
Cms(mm/N)
0.181
Rms(kg/s)
9.4
Le(mH)
0
Re(Ohm)
3.3
Sd(sq.mm)
36987
Vd(l)
0.348
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
0
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.21
Sensitivity(dB) 1-W
85.1
Sensitivity(dB) 2.8-V
89
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
