Model

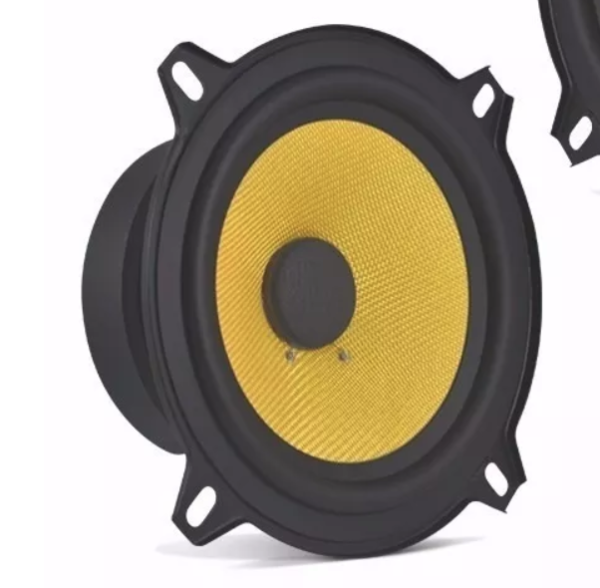

NAR Audio 525CW3
Rating
DIAM
5"
FS(Hz)
72.3
VAS(l)
6.16
QTS
0.8
PWR(W)
120
SPL(dB)
85.6
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
72.3
Vas(l)
6.2
Qts
0.804
Qms
4.4
Qes
0.982
Bl(Tm)
3.8
Mms(gr)
8
Cms(mm/N)
0.577
Rms(kg/s)
0.87
Le(mH)
0
Re(Ohm)
3.7
Sd(sq.mm)
8676
Vd(l)
0.017
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
5
Max Power(W.)
120
RMS Power(W.)
60
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.23
Sensitivity(dB) 1-W
85.6
Sensitivity(dB) 2.8-V
88.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
129
Mounting Depth (mm)
58
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP4, BP6P, Closed, Vented
